RBT UPS System

UPS 400 - 2000kVA (320 – 1600kW)

The RBT builds upon the Rotabloc Energy Storage Unit to provide a simple UPS system that can be configured to provide the desired level of redundancy and resiliency for your facility. Efficient and sustainable, RBT can be used in low and medium voltage and, in either design, RBT delivers highly competitive CapEx and exceptionally low OpEx leading to an unmatched Total Cost of Ownership.

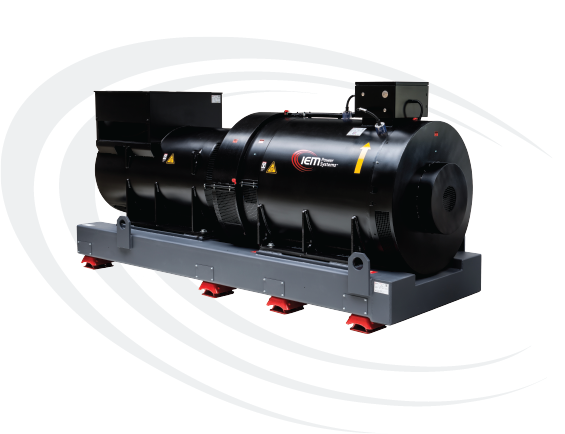

The system consists of a standard synchronous generator with no special windings and a simple steel flywheel. The low speed shaft extends bearing life and reduces maintenance. The ROTABLOC machine is very robust as critical functions do not use fragile components such as power electronics, power capacitors, electro-chemical batteries, active magnetic bearings, electro-mechanical or mechanical friction clutches.

 50 HzkVAkW
RBT-40050400320
RBT-50050500400
RBT-500HP50500500
RBT-63050630504
RBT-80050800640
RBT-1000501000800
RBT-1100501100880
RBT-1250D5012501000
RBT-1600D5016001280
RBT-1750D5017501400
RBT-2000D5020001600
RBT-2200D5022001760
RBT-2400TR5024001920
RBT-2750TR5027502200
RBTRBT Dimensions
L x W x H
RBT WeightControl Cabinet Dimensions
L x W x H
Control Cabinet WeightPower Cabinet Dimensions
L x W x H
Power Cabinet Weight
RBT-4002895 x 1080 x 1529 mm7850 kg1000 x 500 x 2200 mm305 kg1800 x 800 x 2200 mm1575 kg
RBT-5002895 x 1080 x 1529 mm7850 kg1000 x 500 x 2200 mm305 kg1800 x 800 x 2200 mm1575 kg
RBT 500HP2895 x 1080 x 1529 mm7850 kg1000 x 500 x 2200 mm305 kg1800 x 800 x 2200 mm1795 kg
RBT 6303135 x 1160 x 1524 mm8730 kg1000 x 500 x 2200 mm305 kg1800 x 800 x 2200 mm1695 kg
RBT 8003135 x 1160 x 1524 mm8730 kg1000 x 500 x 2200 mm305 kg2000 x 800 x 2200 mm1730 kg
RBT 10003225 x 1200 x 1570 mm9285 kg1000 x 500 x 2200 mm305 kg2400 x 800 x 2200 mm

2295 kg

RBT 11003535 x 1205 x 1745 mm10900 kg1250 x 650 x 2200325 kg4300 x 1050 x 2200 mm3195 kg
RBT 1250D5618 x 1340 x 1707 mm17060 kg1000 x 500 x 2200 mm305 kg3200 x 800 x 2200 mm3090 kg
RBT 1600D5618 x 1340 x 1707 mm17060 kg1000 x 500 x 2200 mm305 kg3400 x 800 x 2200 mm3690 kg
RBT 1750D6058 x 1510 x 1852 mm22340 kg1000 x 500 x 2200 mm305 kg3800 x 800 x 2200 mm4290 kg
RBT 2000D6058 x 1510 x 1852 mm22340 kg1000 x 500 x 2200 mm305 kg4200 x 800 x 2200 mm4590 kg
RBT 2200D3535 x 1205 x 1745 mm10900 kg1250 x 650 x 2200 mm325 kg6150 x 1250 x 2200 mm6370 kg
RBT 2400TR3135 x 1160 x 1524 mm8730 kg1650 x 650 x 2200 mm450 kg6750 x 1250 x 2200 mm7370 kg
RBT 2750TR3225 x 1200 x 1570 mm9285 kg1250 x 650 x 2200 mm325 kg6950 x 1250 x 2200 mm8055 kg
Features Benefits
Outstanding voltage conditioning
  • Protects equipment against mains voltage fluctuations, sags and microcuts
  • Naturally compensates power factor without need for PFC equipment
  • Filters load harmonics and voltage harmonics from mains
  • Eliminates flicker
Total power failure protection
  • Sustainable continuous power supply
  • Ride-through mode covers 90% of mains failures without genset start
  • Flexible DRUPS solution when configured with standard genset
Robust rotary technology
  • Conventional electrical / mechanical machine
  • High reliability
  • Low cost maintenance
High effciency
  • Energy saving
  • Unrivaled low Total Cost of Ownership (TCO)
  • Green technology
High short-circuit power
  • Fast fault-clearing capacity ensuring protections selectivity
  • Suitable for high peak currents (motors and mechanical loads)
  • Suitable for high crest factors (non-linear loads)
Modular and resilient “Plug & Run”
  • Flexibility from day one
  • Scalability for future extension
  • High resilience thanks to full redundancy without single point of failure
  • Ideal for Tier III / Tier IV applications (Uptime Institute)
Easy interfacing
  • User-friendly digital display (HMI)
  • Basic interface via simple contacts
  • Powerful communication features :
    • SCADA / BMS interface via MODBUS RTU/TCP
    • Internet access
    • PC supervision
    • Remote monitoring, alarming and paging features
Low maintenance
  • Simple maintenance operations
  • Unaffected up-time: no need to stop UPS during maintenance
  • Automatic Lubrication System for maximum reliability and lowest TCO

The RBT has been designed to be the central component in the power system of any facility that requires power protection and improved power quality - existing clients include: Data Centers, secure government facilities, research projects, banks, Air Traffic Control and manufacturing plants.

The RBT utilizes the 'simply reliable' Rotabloc energy storage unit which is available in a wide variety of power ratings and adds power and control cabinets to create a relatively simple, and highly adaptable, UPS system.

The RBT can be used singularly, but they are most commonly used in parallel to create redundancy and the resiliency required when running Critical loads that must never lose power during operations.

RBT Systems can be used in conjunction with Low and Medium Voltage power systems and provide, along with the highest levels of reliability, a very sustainable UPS solution.

Medium Voltage

Recognition of the advantages of Medium Voltage (MV) systems in facilities with high power requirements is growing. The benefits include: ease of power distribution, lower TCO, improved safety, reduced maintenance / greater reliability, enhanced flexibility in current and future power infrastructure and improved green credentials with lower embodied energy and lower energy usage.

IEM Power Systems can provide DRUPS systems that will support MV in your facility, delivering high quality, continuous MV power to your operation. We are experts in Medium Voltage and can utilize IEM’s Vesta-AR arc-resistant metal-clad switchgear, is the leading MV solution for distributing power safely and efficiently throughout your building.

Our state of the art Jacksonville (USA) facility has been designed to test both LV and MV systems and we are the only DRUPS manufacturer who can fully integrate and test MV solutions in the factory before shipping.

Using medium voltage solutions may allow your facility design to minimize cabling, reducing capital expenditure and the impact of your facility on the environment. Whether you employ a low voltage or medium voltage design, our simplified approach minimizes embodied energy costs and maximizes operating efficiency.

IEM Power Systems can offer a wealth of configurations and options including Turnkey System Solutions, Medium Voltage Installations, Containerization and Rental UPS.

GREEN TECHNOLOGY

Our highly efficient UPS supports your aims to minimize your environmental impact and mitigate the effects of rising energy costs in the future. Our ROTABLOC design, almost all steel and copper, ensures that it is over 99.97% recyclable.

  • No batteries – no need for expensive replacement cycle / no costly disposal of hazardous materials
  • No air conditioning required – providing a/c for battery rooms is a significant cost and impacts the environment
  • Dynamic Autonomy Control (DAC): Automatic speed adaptation for optimum efficiency at partial load with FULL critical load protection
  • 91% of all voltage interruptions last less than 1 second (European urban locations) the RBT protects the load without generator starts*.

*This is configurable to maximize RBT power output or compensate for short interruptions.
